产品介绍产品图纸

产品编号：102114144414
产品名称：双级XWED型摆线针轮减速机
产品类别：摆线针轮减速机系列
产品型号：XWED

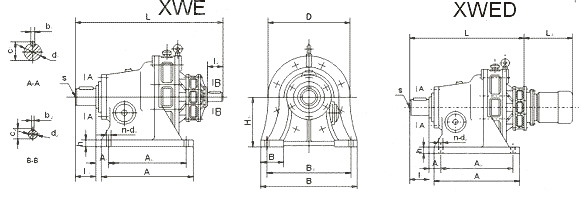

Appearance and installation dimension (mm) Frame Centre height Installationdimension Shaft end dimension A1 A0 B1 B0 h s Hole Output shaft Intput shaft n d0 d1 b1 c1 l1 d2 b2 c2 l2 31 140 96 100 55 250 20 M8 4 16 35 10 38 55 15 5 17 25 42 150 95 145 65 290 22 M10 45 14 48.5 74 53 160 115 150 75 370 25 M12 55 16 59 91 18 6 20.5 35 63 200 36 275 380 30 22 65 18 69 89 74 220 320 85 420 80 22 85 109 22 24.5 40 84 250 35 380 120 480 35 M16 90 25 95 120 85 30 8 33 45 95 290 45 480 560 40 M20 26 100 28 106 141 106 325 80 500 630 45 30 110 116 150 35 10 38 54 116 420 122 330×2 160 800 50 2-M20 32 130 32 137 202 117 6 40 12 43 65 (mm) Frame Outerside dimension Weight kg A B H D Double Shaft style Flange style L L1 L2 31 150 290 240 200 310 258 According to motor size 37 42 195 330 275 240 384 326 75 53 260 420 356 300 457 383 94 63 335 430 425 340 519 447 148 74 380 470 460 360 589 508 193 84 440 530 529 430 633 552 270 85 656 566 310 95 560 620 614 500 745 655 485 106 600 690 709 580 855 750 650 116 810 880 883 710 1066 958 1232 117 1081 963 1280 Note:Matching tolerance of shaft d1/d2 is h6
