产品介绍产品图纸

产品编号：102113482414
产品名称：单级BLD型摆线针轮减速机
产品类别：摆线针轮减速机系列
产品型号：BLD

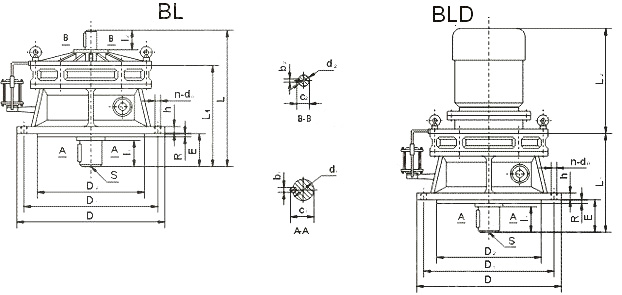

Appearance and installation dimension (mm) Frame Installationdimension Shaft end dimension D1 D2 E h R s Hole Output shaft Intput shaft n d0 d1 b1 c1 l1 d2 b2 c2 l2 09 134 110 35 10 3 M8 4 11 22 6 24.5 30 15 5 17 25 10 160 140 40 30 8 33 35 22 11 200 170 60 12 4 6 35 10 38 45 18 6 20.5 35 12 230 200 70 15 M10 45 14 48.5 64 22 24.5 40 13 310 270 80 20 5 M12 13 55 16 59 75 30 8 33 55 14 360 320 99 22 8 15 70 20 74.5 92 35 10 38 60 15 450 400 115 30 M16 12 18 90 25 95 108 45 14 48.5 70 16 520 455 173 35 8 M20 22 100 28 106 130 50 53.5 80 17 590 520 180 40 10 24 120 32 127 165 55 16 59 100 18 800 680 215 45 2-M20 34 140 36 148 200 70 20 74.5 120 (mm) Frame Outerside dimension Weight kg D Double Shaft style Flange style L L1 L2 B2 09 160 202 141 According to motor size 6 10 190 215 155 13 11 230 274 191 22 12 260 321 255 40 13 340 310 302 75 14 400 469 358 120 15 490 584 443 180 16 580 701 527 380 17 650 806 608 611 18 880 1042 811 1170 Note:Matching tolerance of shaft d1/d2 is h6
